TECHNICAL INFORMATION

Wooden Entrance Doors VINTAGE - Technical data

STANDARD VERSION

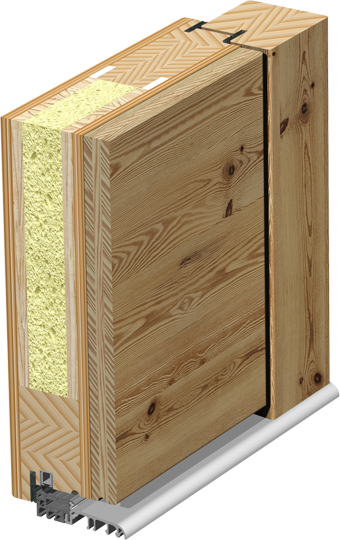

• door leaf is made of a special multi-layer panel reinforced with a solid wood frame and integrated stabilizers that prevent warping. Thermal conductivity of UP plate = 0.93 W/m2K.
• excellent thermal insulation UD (depending on the model, spruce) = 1.1 - 1.3 W/(m2K)
• door leaf externally covered with an old wood application, thickness approx. 20 mm
• possible old wood application tones: spruce 3B, spruce 5C, oak 2E, oak 4E
• oak 2E oiled, other color tones are raw. The surface of the door must not be exposed to direct weather influences (sun, rain, snow)!
• optionally, the door frame can also be covered on the outside with old wood veneer, otherwise painted according to the RAL color chart RAL7016, RAL7021, RAL9005
• excellent thermal insulation UD (depending on the model, spruce) = 1.0 - 1.3 W/(m2K)
• three-layer insulating glass, Ug=0.7 W/(m2K)
• double sealing and thermo-insulating threshold TB75
• 3-point locking and strong 3D adjustable hinges
• type of wood: spruce, oak, larch (only inside)
• door leaf thickness from 88 mm (68+20 mm), frame thickness 68 mm

<

SPECIAL VERSION

• dimensions up to 125 x 270 cm
• possible production of transom and side elements
• certain models possible in low-energy version UD < 1.0 W/(m2K)
• the frame is externally covered with an aluminum profile
